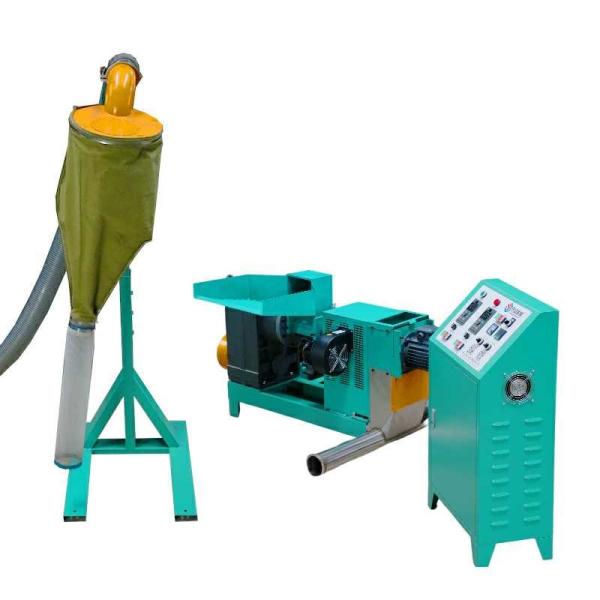

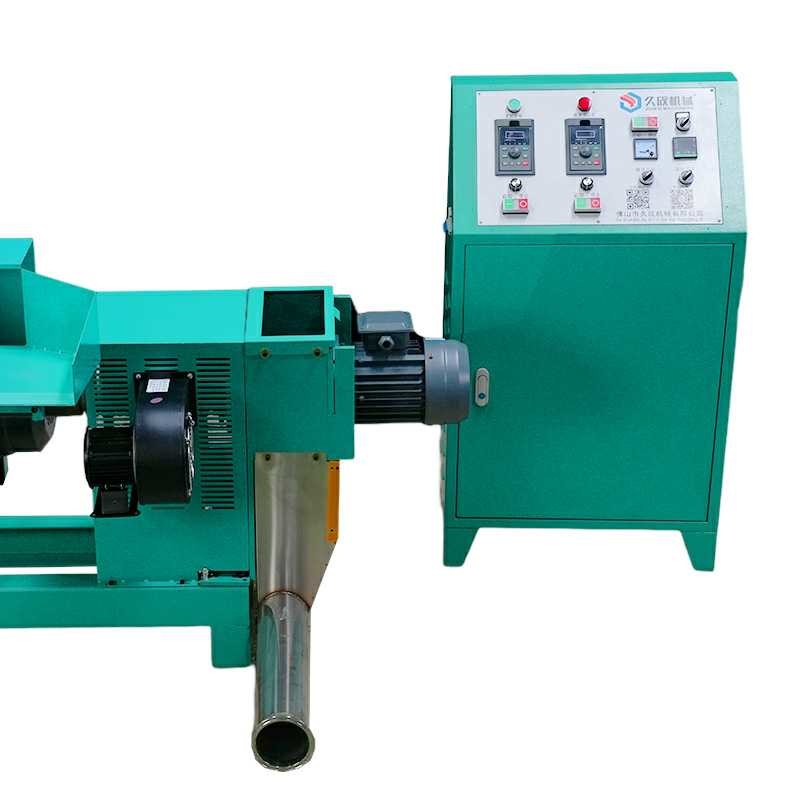

Polyester PUF Plastic Film Pelletizing Machine Plastic Automatic Granulator
Advantages:
1,Good granulation effect:
The product is cold-extruded, cutting without heating, and does not change the molecular structure and raw material mixing rate.
2,Stable and efficient:
The granulator is very small, the speed is controlled, and the maximum output is 200m/min,150kg/h.
3,Widely used:
The Plastic Film Pelletizing Machine can be used in the combination of CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE,winding film,fresh wrap,protective film,non-woven cloth and other film waste,and high proportion of edge material recovery to raw materials,which can be accompanied by continuous flow production line and online synchronization of film blowing unit Recycle.
4,Energy saving and environmental protection:
The equipment is small in size and easy to install. There is no need to heat and no emissions during production, and only a single motor (3kw-7.5kw) is used as power, and the energy consumption is low.
5,Humanized design:
It's simple to operate,you only need to send the edge material into the port to start it.The Plastic Film Pelletizing Machine is equipped with multiple alarm protection devices.
6,Durable:
The sourcing of the Plastic Film Pelletizing Machine's parts are reliable in brand.All cut tools are made by aluminium alloy,which is durable for many years.
| Parameter | |
| Model | JXDW-90 |
| Total Power | 17KW |
| Output | ≈90kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 1800x1450x800 |
| Weight | ≈800kg |
| Screw | 90 |
| Reducer | 173 |
| Pelletizing Motor | 0.75W |
| Extrusion Motor | 15KW |
| Inverter | 15KW+1.5KW |
