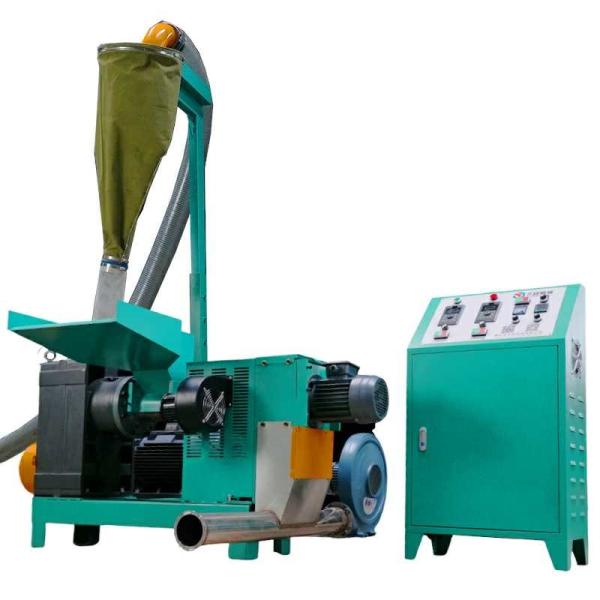

Cold Extruded Polypropylene Plastic Scrap Granulator Shredder Machine

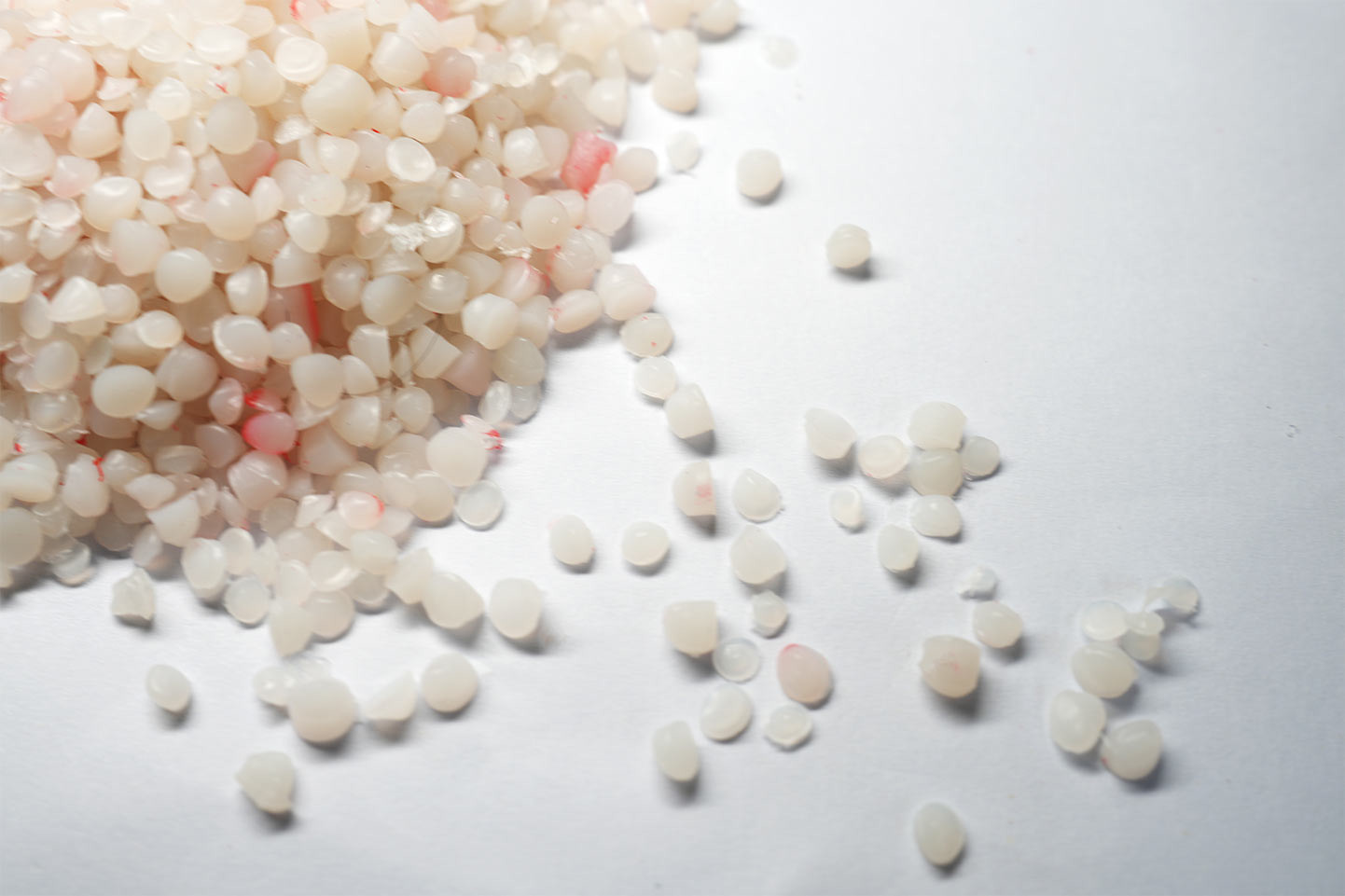

The extruded plastic particles are uniform, beautiful and transparent
Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation
The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process
Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation
Cool the soft plastic strip extruded from the plastic granulator to make it hard, and then it can be cut into granules
Made of stainless steel, it can ensure no rust and corrosion when in contact with water for a long time
The Plastic Scrap Granulator machine has good sealing performance, less leakage and convenient adjustment of cutting distance
The hob is made of carbide with high wear resistance
The Plastic Scrap Granulator machine is designed without gears, which can effectively reduce the noise of the machine
The Independent electric box is convenient, safe, and beautiful
Made of stainless steel, the storage tank and the wind-blown bin are combined into one, occupying less space and saving labor.
The size of the storage tank can be customized according to customer requirements
Can be connected with various granulators, easy to move
Small fan power, fast feeding speed, cost-saving
Hopper can be disassembled for easy cleaning
| Parameter | |
| Model | JXDW-125 |
| Total Power | 34KW |
| Output | ≈150kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 2200x1600x1100 |
| Weight | ≈1100kg |
| Screw | 125 |
| Reducer | 200 |
| Pelletizing Motor | 1.1W |
| Extrusion Motor | 30KW |
| Inverter | 30KW+1.5KW |
