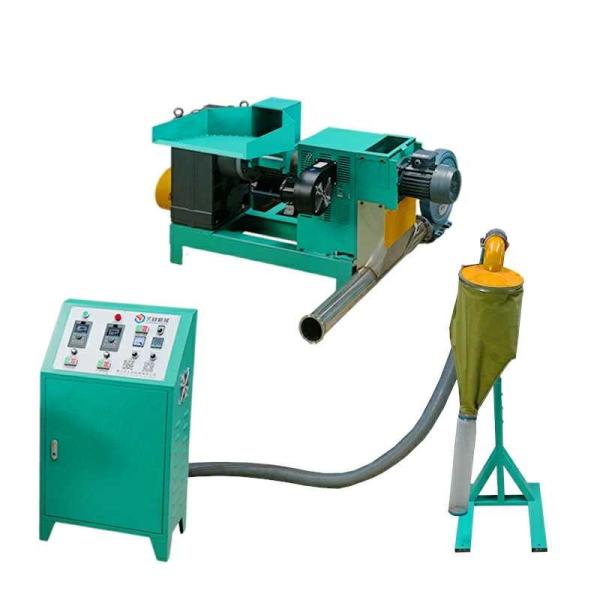

Waste Plastic Pelletizing Recycling Machine PVC Granulating Machine
JIUXIN compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step. Applied in the plastics recycling and pelletizing process. Our system is a reliable and efficient solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
Final productions produced by compacting and pelletizing system are in the form of pellets/granules, can directly put into the production line for film blowing, pipe extrusion and plastics injection, etc.
Feeding:
As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls’ scraps, roll hauling off device is an optional feeding method.
Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor’s room is. Metal detector can be combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal is found in feeding section.
Shredding and Cleaning Plastic:
Two-stage tandem exhaust granulation unit is widely used in the recycling and granulation of various types of plastics such as (LDPE), (HDPE), (PP).
Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation
The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process
Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation
Wet pulverization enhances the cleaning effect of waste plastics
Working Principle:
1,Working with the film making machine:
During the processing of film,the scraps sent out by the film making machine will be transferred to the transaction mechanism of the granulator immediately.The extrusion mechanism partially melts the scraps and extrudes them to the mold.The granulation mechanism cuts them into average particles,which are then inhaled by the feeding cooling mechanism and sent to the cooling pipe.Finally,they are sent to the customer collection device to complete the recycling procedure.
| Model | JXDW-150 |
| Total Power | 34KW |
| Output | ≈200kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 2450x1050x1500 |
| Weight | ≈1500kg |
| Screw | 150 |
| Reducer | 250 |
| Pelletizing Motor | 1.5W |
| Extrusion Motor | 45KW |
| Inverter | 45KW+1.5KW |
